| Material housing | Stainless steel 1.4404 (AISI 316) |
| Insert | |
| Installation type | Front wall |
| Version | Screw |

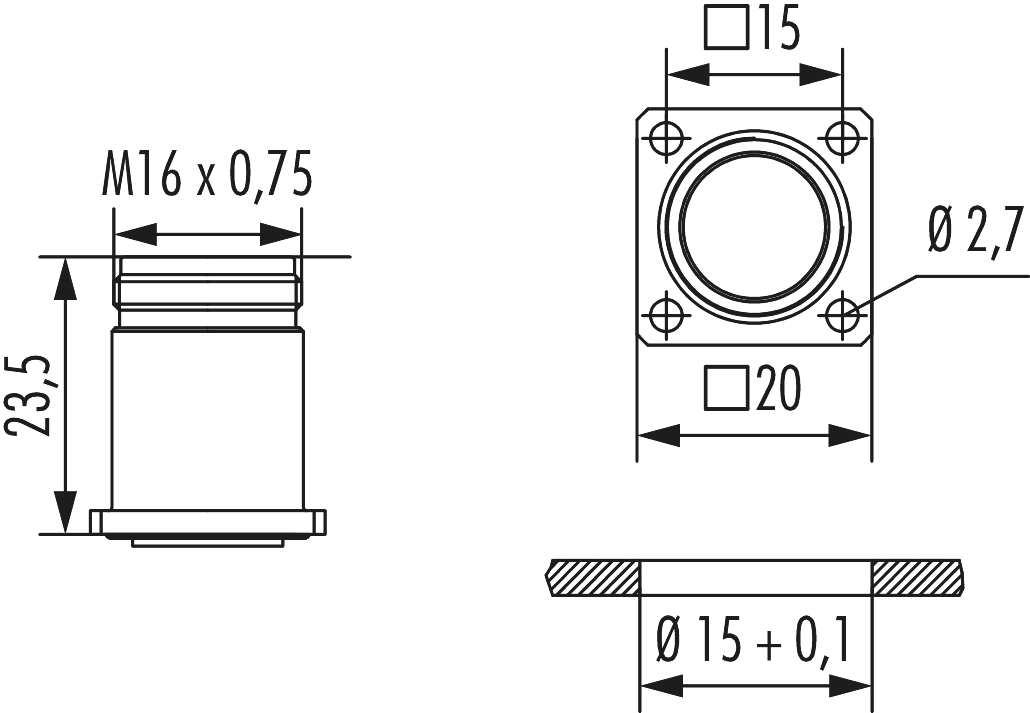

| External thread plug-in side | M16 x 0,75 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals/o-rings |
alternatively EPDM, FKM (FPM) |
| Flange | 20 x 20 mm |
| Hole distance | 15 mm |
| Hole diameter | 4 x Ø 2,7 mm |
| Wrench size (SW1/SW2) | / mm |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
