| Characteristic of connection | PCB assembly |
| Number of poles | 18 |

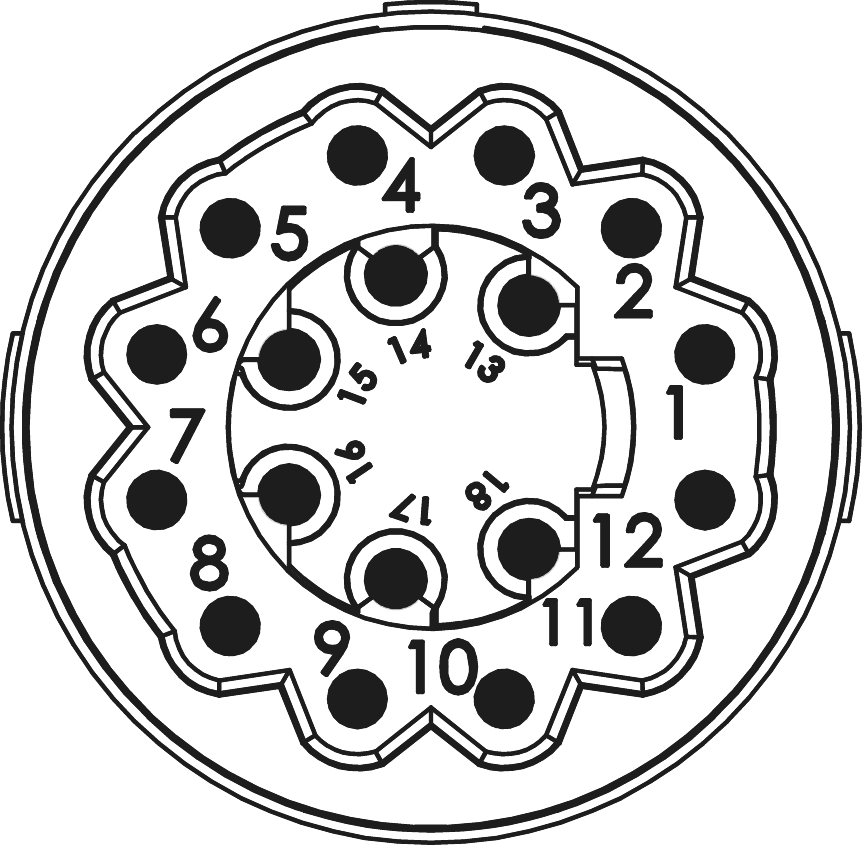

| Pole picture | 12 + 6 |
| Dip solder contacts length | 17 mm |
| Insert | Socket |
| Material insulating body |
PA 6, PBT |
| Number of contacts signal | 18 |
| Contact-Ø signal | 0.8 mm |
| Nominal current signal | 3 A |
| Nominal voltage at degree of pollution 3 signal | 24 V~ |
| Test voltage signal | 400 V~ |
| Insulation resistance signal | > 10^8 Ω |
| max. contact resistance signal | 3 mOhm |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Flammability | V-0 (UL 94) |
