| Characteristic of connection | Crimp |
| Number of poles | 7 |

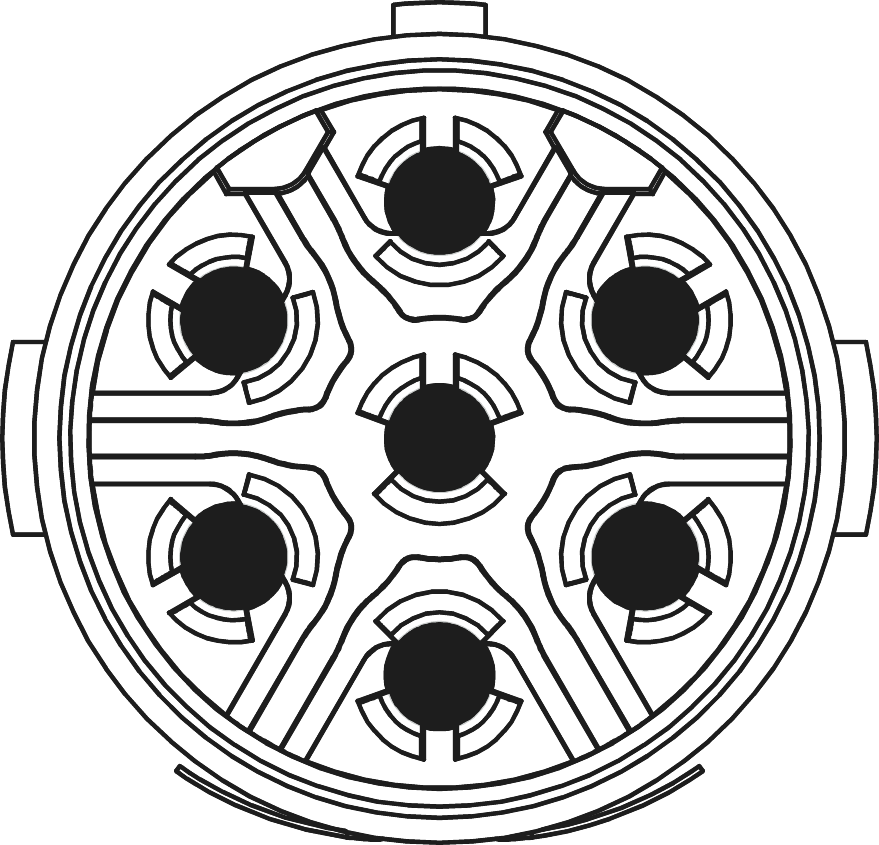

| Pole picture | 6 + PE |
| Coding | PE |
| Insert | Pin |
| Color contact insert | DESINA orange |
| Material insulating body |
PA 6, PBT |
| Number of contacts power | 6 |
| Number of contacts PE | 1 |
| Contact-Ø signal | 1.25 mm |
| Nominal current signal | 16 A |
| Nominal voltage at degree of pollution 3 power | 500 V~ |
| Test voltage signal | 1500 V~ |
| Insulation resistance power | > 10^8 Ω |
| max. contact resistance signal | 3 mOhm |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Flammability | V-0 (UL 94) |
| Suitable power contacts | 7010981211 |
| Suitable PE-/FE-contacts | 7010981211 |
