Characteristic of connection | Crimp |
Number of poles | 8 |

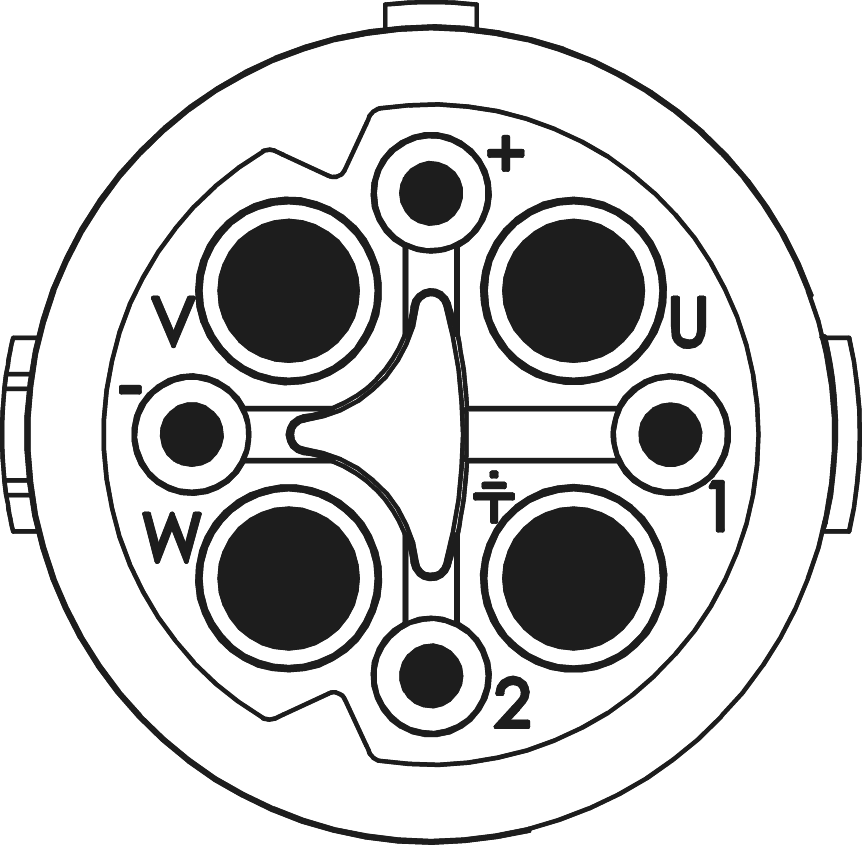

Pole picture | 4 + 3 + PE |
Coding | PE |
Insert | Socket |
Color contact insert | white |
Material insulating body |
PA 6, PBT |
Number of contacts signal | 4 |
Number of contacts power | 4 |
Number of contacts PE | 1 |
Contact-Ø signal | 0.8 mm |
Contact-Ø power | 1.25 mm |
Terminal cross section power | 0,34 – 1,5 mm² |
Nominal current signal | 5 A |
Nominal current power | 16 A |
Nominal voltage at degree of pollution 3 signal | 160 V~ |
Nominal voltage at degree of pollution 3 power | 600 V~ |
Test voltage signal | 1500 V~ |
Test voltage power | 2500 V~ |
Insulation resistance signal | > 10^8 Ω |
Insulation resistance power | > 10^8 Ω |
max. contact resistance signal | 3 mOhm |
max. contact resistance power | 3 mOhm |
Temperature range | -40°C to +125°C |
Degree of Protection | 3 |
Flammability | V-0 (UL 94) |
Suitable Signal contacts | 7010980814 |
Suitable power contacts | 7010981212 |
