Characteristic of connection | Solder |
Number of poles | 12 |

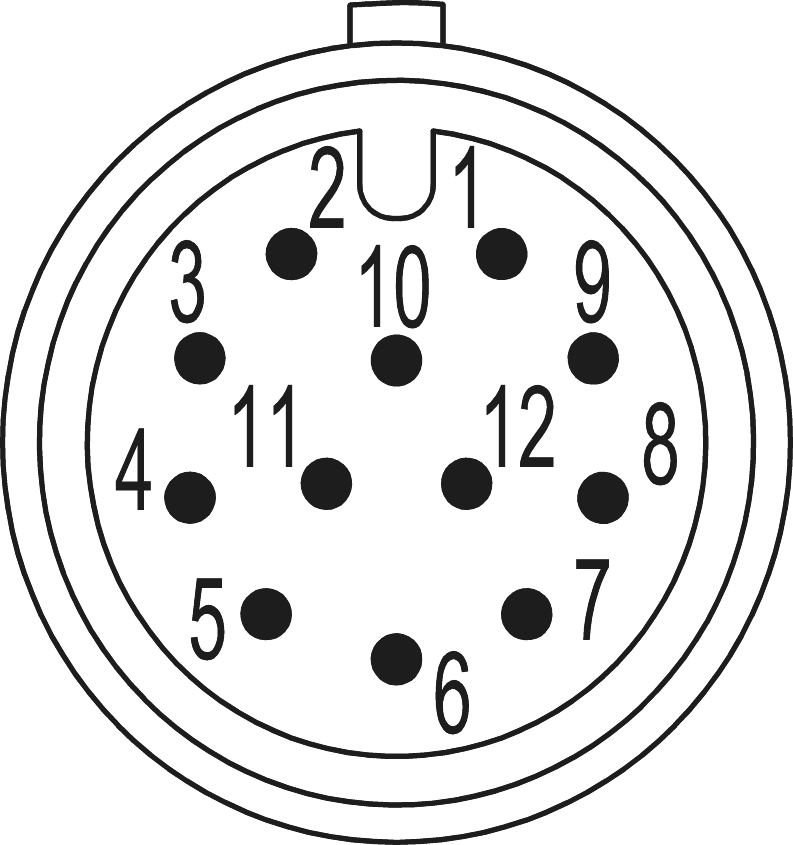

Pole picture | 12 |
Dip solder contacts length | 4.7 mm |
Insert | Pin |
Color contact insert | black |
Material insulating body | PBT |
Number of contacts signal | 12 |
Contact-Ø signal | 0.59 mm |
Nominal current signal | 1,5 A |
Nominal voltage at degree of pollution 3 signal | 30 V~ |
Test voltage signal | 500 V~ |
Insulation resistance signal | 10^8 Ω |
max. contact resistance signal | 3 mOhm |
Temperature range | -40°C to +125°C |
Degree of Protection | 3 |
Overvoltage category | II |
Flammability | V-0 (UL 94) |
