| Housing type | Cable |
| Material housing |
Zinc Die Cast, brass |
| Material housing surface | Nickel |
| Version | Screw |
| Internal thread plug-in side | M23 x 1 |

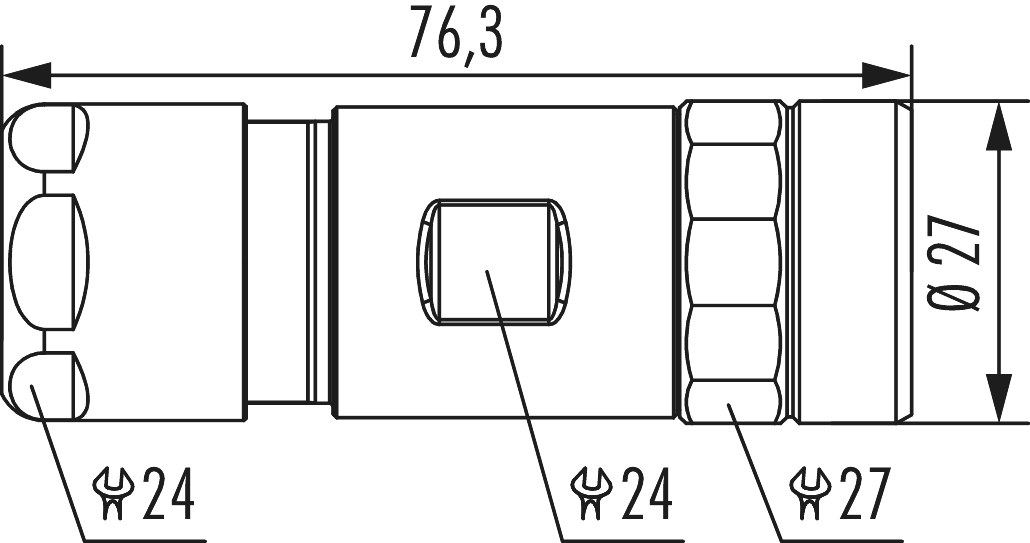

| Knurled nut-Ø plug-in side | 27 mm |
| Locking type | Screw |
| Shield | shielded |
| Material seals/o-rings | NBR |
| Wrench size (SW1/SW2/SW3) | 24/24/27 mm |
| Cable diameter | 11 – 17 mm |
| Temperature range | -40°C to +125°C |
| Protection class | IP 67 |
| suitable contact inserts | 7003920102 |
