| Material housing | Zinc Die Cast |
| Material housing surface | Nickel |
| Installation type | Front wall |
| External thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Material seals/o-rings | NBR |

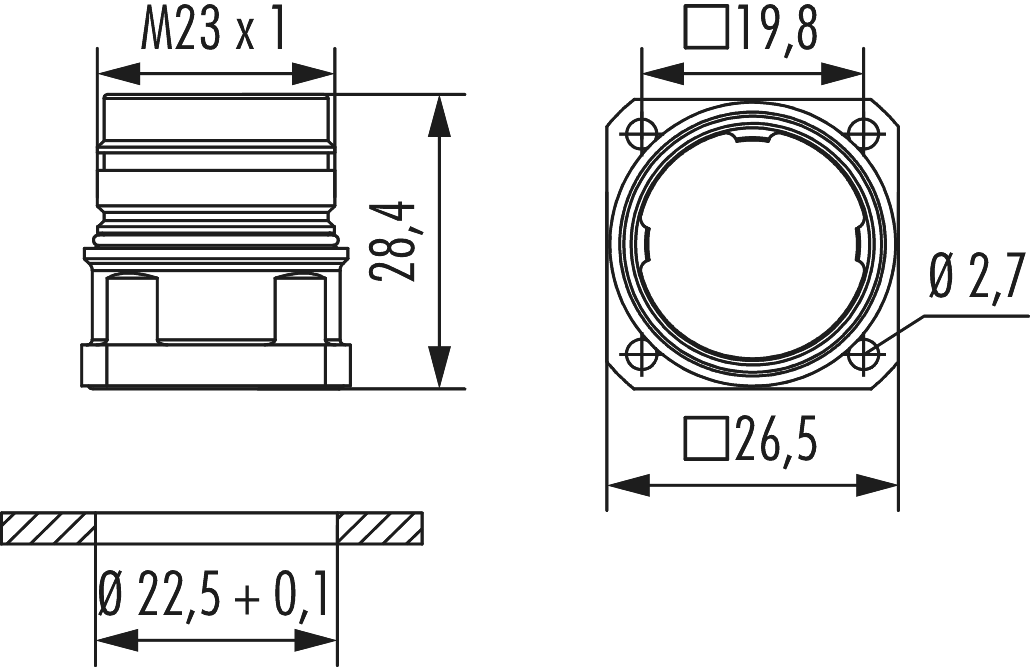

| Flange | 26 x 26 mm |
| Hole distance | 19.8 mm |
| Hole diameter | 4 x Ø 2,7 mm |
| Protection class | IP 67 |
| Temperature range | -40°C to +125°C |
| suitable contact inserts |
7001920107, 7003920101 |
