| Housing type | Cable |
| Material housing |
Zinc Die Cast, brass |
| Material housing surface | Nickel |
| Version | Screw |
| Internal thread plug-in side | M23 x 1 |

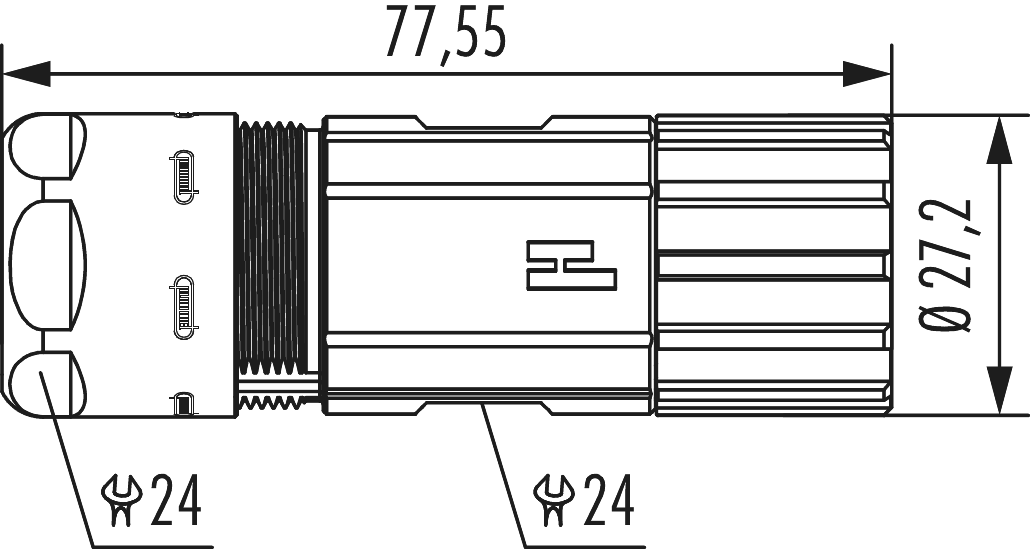

| Knurled nut-Ø plug-in side | 27.2 mm |
| Locking type | Screw |
| Shield | shielded |
| Material seals/o-rings | NBR |
| Wrench size (SW1/SW2) | 24/24 mm |
| Cable diameter | 7 – 12 mm |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| suitable contact inserts |
7084909101, 7084909102, 7084910101, 7084910102, 7084943121, 7084943122, 7084944101, 7084944102, 7084951121, 7084951122, 7084953101, 7084953102 |
