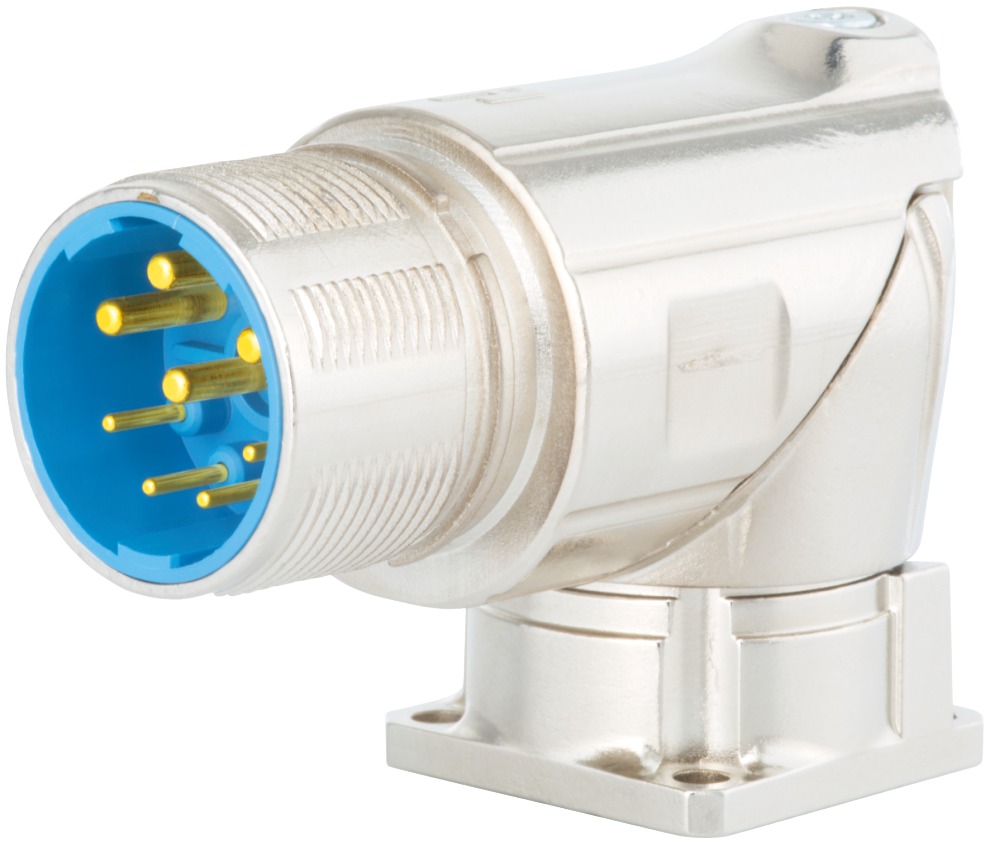

Housing type | Panel angled |
Material housing | Zinc Die Cast |
Material housing surface | Nickel |
Version |
right angled, TWILOCK |
External thread plug-in side | M23 x 1 |
Locking type | Screw |
Shield | unshielded |
Seal type | O-Ring |
Material seals/o-rings | FKM (FPM) |
Rotatable | 330 ° |
Panel hole | Ø 20 + 0,1 mm |

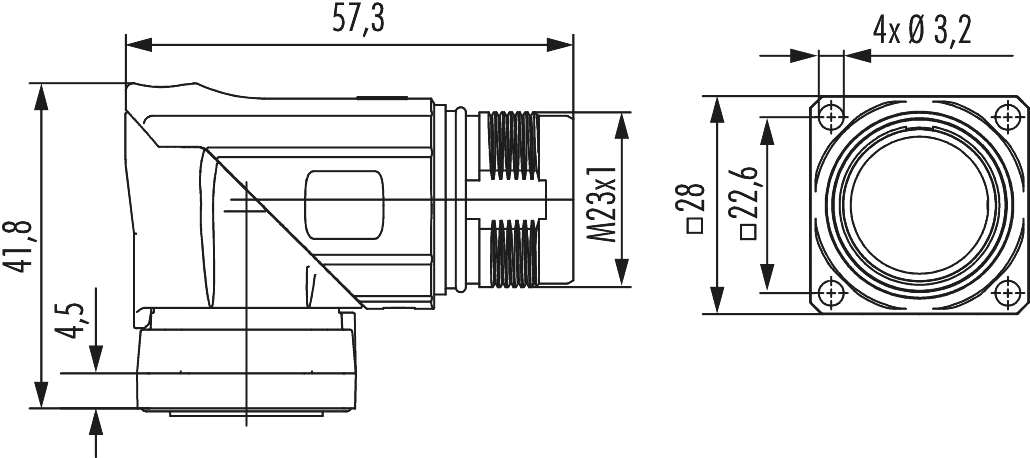

Flange | 28 x 28 mm |
Hole distance | 22.6 mm |
Hole diameter | 4 x Ø 3,2 mm |
Length (L) | 57.3 mm |
Protection class |
IP 67, IP 69 K |
Temperature range | -40°C to +125°C |
suitable contact inserts |
7084909101, 7084909102, 7084910101, 7084910102, 7084943121, 7084943122, 7084944101, 7084944102, 7084951121, 7084951122, 7084953101, 7084953102 |
