Material housing |
brass, Zinc Die Cast |
Material housing surface | Nickel |
Insert | RJ45 |
Installation type | Rear wall |
Version | with vibration protection |
External thread plug-in side | M23 x 1 |
Locking type | Screw |
Shield | unshielded |
Seal type | O-Ring |
Material seals/o-rings |
FKM (FPM), NBR |
Coding position | |

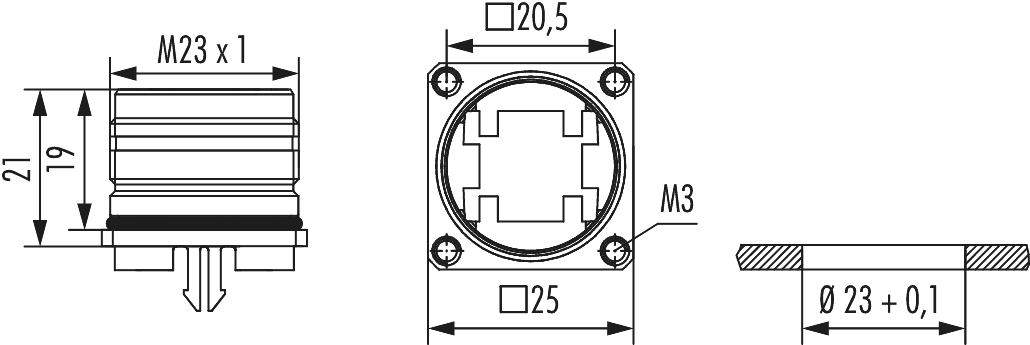

Panel hole | Ø 23 + 0,1 mm |
Flange | 25 x 25 mm |
Hole distance | 20.5 mm |
Hole diameter | 4 x M3 mm |
Length (L) | 21 mm |
Protection class |
IP 67, IP 69 K |
Temperature range | -40°C to +125°C |
suitable contact inserts |
7MRJ450007, A7RJ-081M41, A7RJ-081M6A, A7RJ-821M51 |
