| Material housing |
brass, Zinc Die Cast |
| Material housing surface | Nickel |
| Insert | RJ45 |
| Installation type | Rear wall |
| External thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals/o-rings |
FKM (FPM), NBR |
| Coding position |

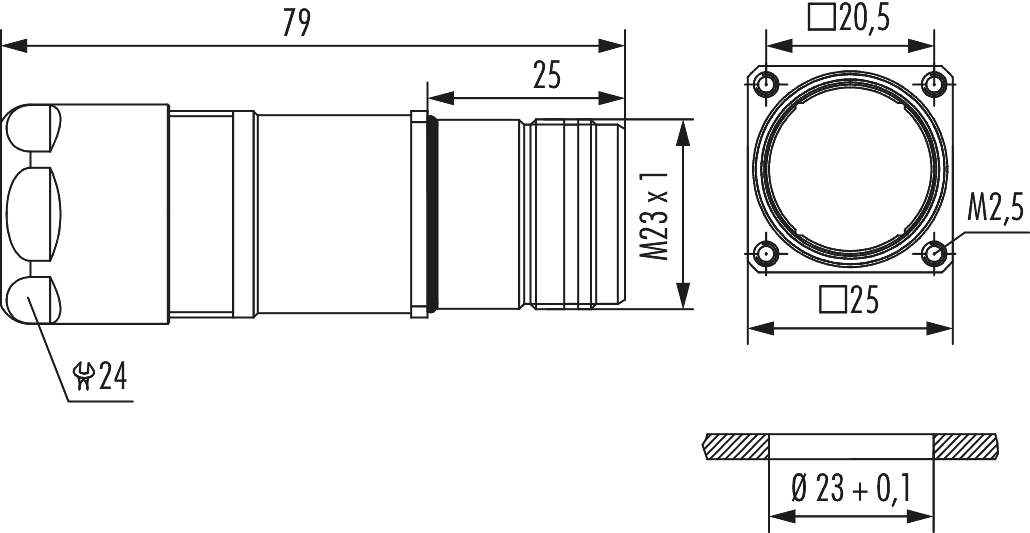

| Panel hole | Ø 23 + 0,1 mm |
| Flange | 25 x 25 mm |
| Hole distance | 20.5 mm |
| Hole diameter | 4 x M2,5 mm |
| Length (L) | 79 mm |
| Wrench size (SW) | 24 mm |
| Cable diameter | 3 – 7 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
| suitable contact inserts |
7MRJ450007, A7RJ-081M41, A7RJ-081M6A, A7RJ-821M51 |
