| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Installation type | Rear wall |
| Version | with knurled nut |
| Internal thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Material seals/o-rings | NBR |
| Coding position |

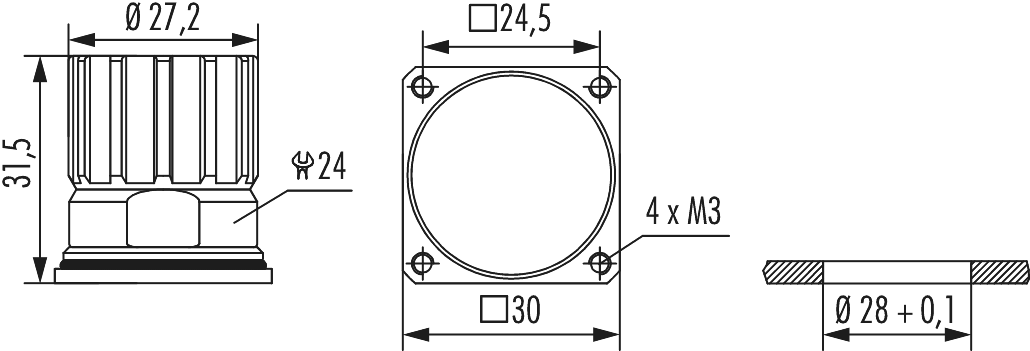

| Panel hole | Ø 28 + 0,1 mm |
| Flange | 30 x 30 mm |
| Hole distance | 24.5 mm |
| Hole diameter | 4 x M3 mm |
| Length (L) | 31.5 mm |
| Wrench size (SW) | 24 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
