| Characteristic of connection | Solder |
| Number of poles | 12 |

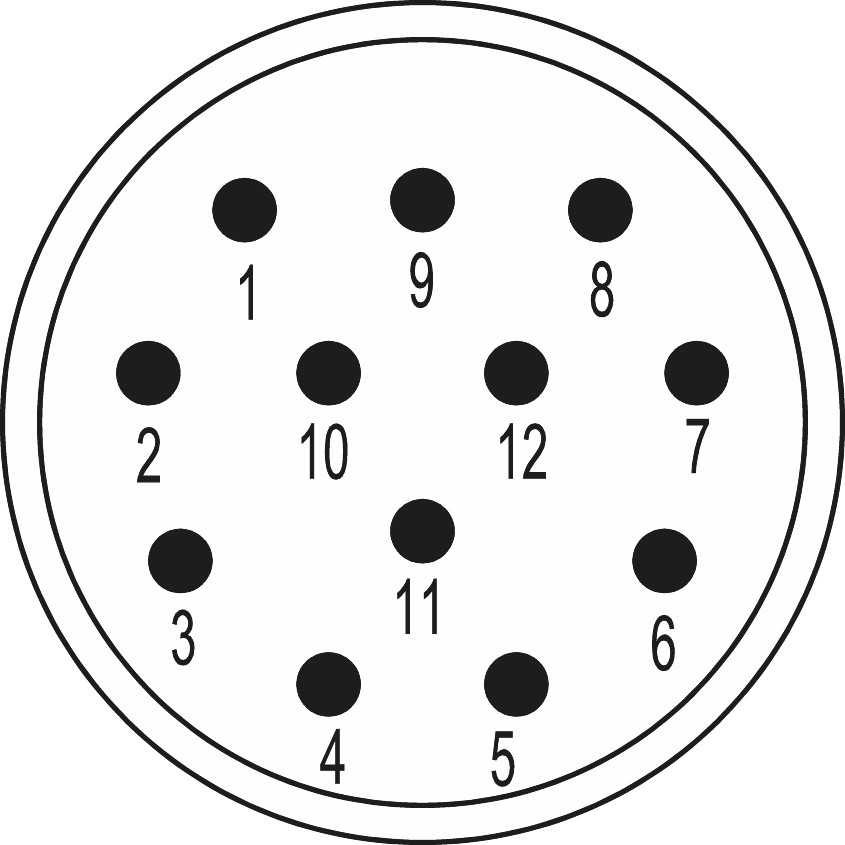

| Pole picture | 11 + PE (Pos.9) |
| Coding | Pos. 9 PE |
| Pinout clockwise | |
| Insert | Socket |
| Color contact insert | white |
| Material insulating body |
PA 6, PBT |
| Number of contacts signal | 12 |
| Contact-Ø signal | 1 mm |
| Nominal current signal | 8 A |
| Nominal voltage at degree of pollution 3 signal | 200 V~ |
| Test voltage signal | 1500 V~ |
| Insulation resistance signal | > 10^8 Ω |
| max. contact resistance signal | 3 mOhm |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Flammability | V-0 (UL 94) |
