| Characteristic of connection | Crimp |
| Number of poles | 19 |
| Pole picture | 18 + PE (Pos. 12) |
| Coding | Pos. 12 PE |

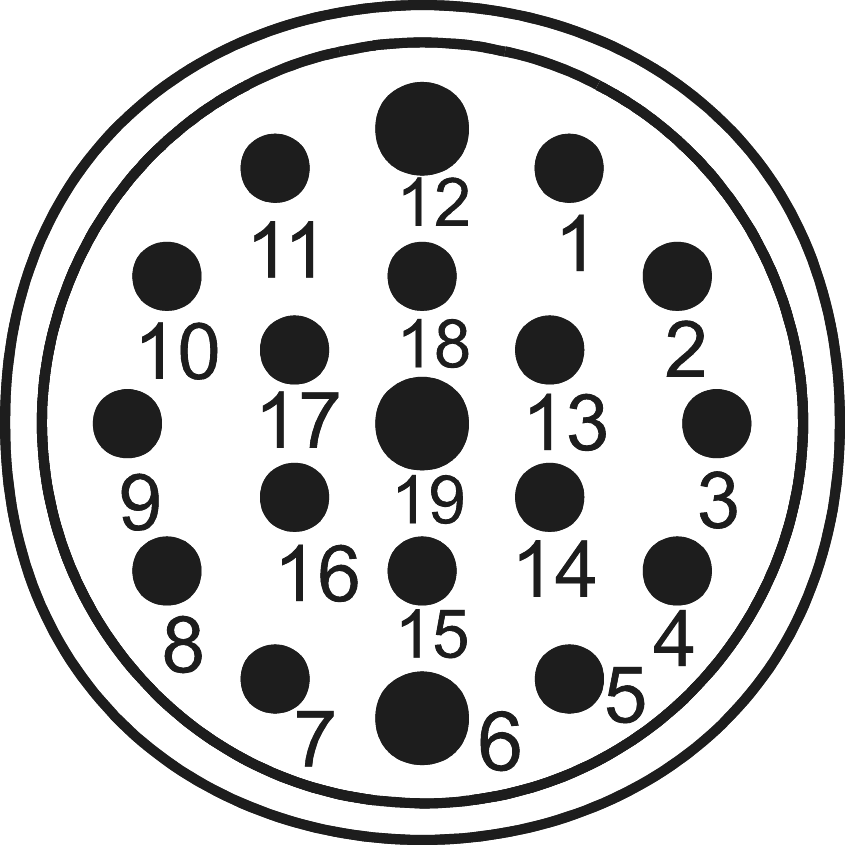

| Pinout clockwise | |
| Insert | Pin |
| Color contact insert | white |
| Material insulating body |
PA 6, PBT |
| Number of contacts signal | 16 |
| Number of contacts power | 3 |
| Contact-Ø signal | 1 mm |
| Contact-Ø power | 1.5 mm |
| Terminal cross section power | 0,14 – 1 mm² |
| Nominal current signal | 8 A |
| Nominal current power | 10 A |
| Nominal voltage at degree of pollution 3 signal | 110 V~ |
| Nominal voltage at degree of pollution 3 power | 110 V~ |
| Test voltage signal | 840 V~ |
| Test voltage power | 840 V~ |
| Insulation resistance signal | > 10^8 Ω |
| Insulation resistance power | > 10^8 Ω |
| max. contact resistance signal | 3 mOhm |
| max. contact resistance power | 3 mOhm |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Flammability | V-0 (UL 94) |
