| Material insulating body |
PA 6, PBT |
| Contact Ø | 2 mm |
| Nominal current signal | 20 A |
| Nominal voltage at degree of pollution 3 signal | 300 V~ |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Minimum mating cycles | > 1000 |

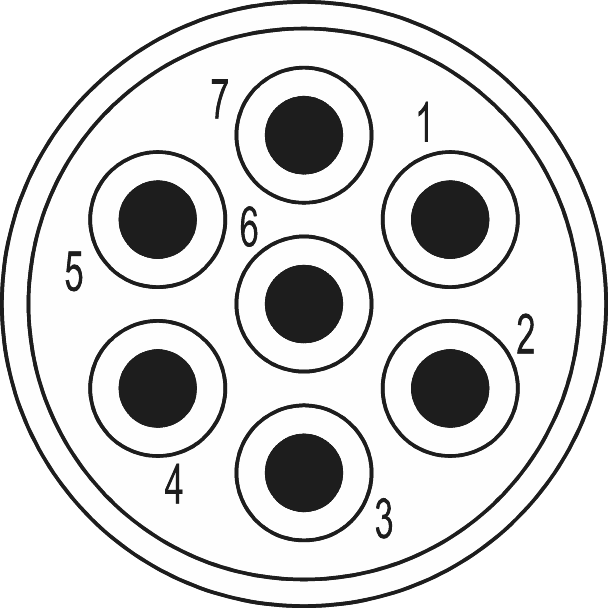

Characteristic of connection Characteristic of connection | Number of poles Number of poles | Pole picture Pole picture | Insert Insert | Item-No | |
|---|---|---|---|---|---|
| Zurücksetzen | |||||
| Solder | 7 | 7 | Pinout clockwise | Pin | 7.001.907.103 |
| Solder | 7 | 7 | Pinout clockwise | Socket | 7.001.907.104 |
| PCB assembly | 7 | 7 | Pinout clockwise | Pin | 7.001.907.107 |
| PCB assembly | 7 | 7 | Pinout clockwise | Socket | 7.001.907.108 |
| PCB assembly | 7 | 7 | Pinout clockwise | Socket | 7.001.907.118 |
| PCB assembly | 7 | 7 | Pinout clockwise | Pin | 7.001.907.127 |
| PCB assembly | 7 | 7 | Pinout clockwise | Pin | 7.001.907.137 |
| Crimp | 7 | 7 | Pinout clockwise | Pin | 7.003.907.101 |
| Crimp | 7 | 7 | Pinout clockwise | Socket | 7.003.907.102 |
