| Material insulating body |
PA 6, PBT |
| Contact Ø | 1 mm│2 mm |
| Nominal current signal | 8 A |
| Nominal current power | 20 A |
| Nominal voltage at degree of pollution 3 signal | 200 V~ |
| Nominal voltage at degree of pollution 3 power | 200 V~ |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Minimum mating cycles | > 1000 |

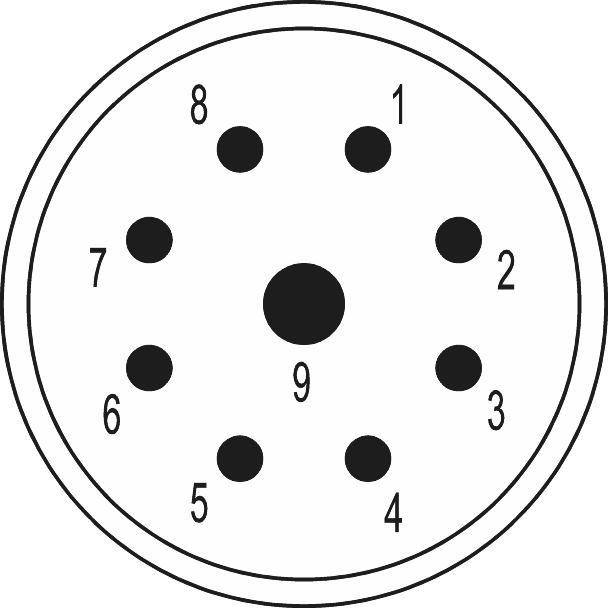

Characteristic of connection Characteristic of connection | Number of poles Number of poles | Pole picture Pole picture | Insert Insert | Item-No | |
|---|---|---|---|---|---|
| Zurücksetzen | |||||
| Solder | 9 | 8 + 1 | Pinout clockwise | Pin | 7.001.981.103 |
| Solder | 9 | 8 + 1 | Pinout clockwise | Socket | 7.001.981.104 |
| PCB assembly | 9 | 8 + 1 | Pinout clockwise | Pin | 7.001.981.107 |
| PCB assembly | 9 | 8 + 1 | Pinout clockwise | Socket | 7.001.981.108 |
| PCB assembly | 9 | 8 + 1 | Pinout clockwise | Socket | 7.001.981.118 |
| PCB assembly | 9 | 8 + 1 | Pinout clockwise | Pin | 7.001.981.127 |
| PCB assembly | 9 | 8 + 1 | Pinout clockwise | Pin | 7.001.981.137 |
| Solder | 9 | 8 + 1 | Pinout counter-clockwise | Pin | 7.002.981.103 |
| Solder | 9 | 8 + 1 | Pinout counter-clockwise | Socket | 7.002.981.104 |
| PCB assembly | 9 | 8 + 1 | Pinout counter-clockwise | Pin | 7.002.981.107 |
| PCB assembly | 9 | 8 + 1 | Pinout counter-clockwise | Socket | 7.002.981.108 |
| PCB assembly | 9 | 8 + 1 | Pinout counter-clockwise | Socket | 7.002.981.118 |
| PCB assembly | 9 | 8 + 1 | Pinout counter-clockwise | Pin | 7.002.981.127 |
| PCB assembly | 9 | 8 + 1 | Pinout counter-clockwise | Pin | 7.002.981.137 |
| Crimp | 9 | 8 + 1 | Pinout clockwise | Pin | 7.003.981.101 |
| Crimp | 9 | 8 + 1 | Pinout clockwise | Socket | 7.003.981.102 |
| Crimp | 9 | 8 + 1 | Pinout counter-clockwise | Pin | 7.004.981.101 |
| Crimp | 9 | 8 + 1 | Pinout counter-clockwise | Socket | 7.004.981.102 |
