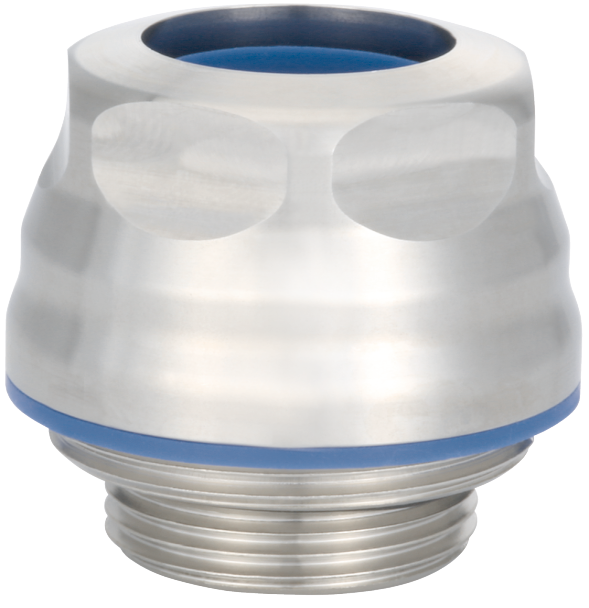

HSK-INOX-HD-Pro

The HSK-INOX Hygienic-Design-Pro cable gland is suitable for use in all areas in which the adherence of microorganisms and dirt must be prevented, for example in the pharmaceutical, food and chemical industries as well as in biotechnology and clean room technology.

Material	INOX 1.4404
Seal	VMQ (silicone)
Protection class	IP 66, IP68 - 10bar/30min, IP 69 K

Temperature range	-40°C to +120°C
Variant	Metric

Certificates

EMV
ECOLAB
CE
cUR
UR
UL
cUL

Filter

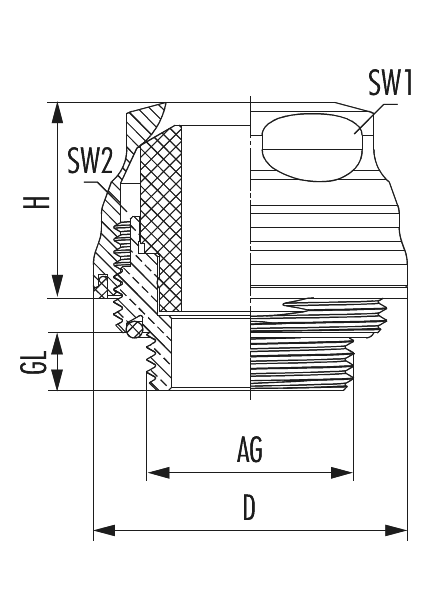

External thread (AG) AG M12 x 1,5 M16 x 1,5 M20 x 1,5 M25 x 1,5 M32 x 1,5	Cable diameter Cable Ø 5 – 6,5 mm 6 – 7,5 mm 7,5 – 10 mm 9 – 12 mm 11 – 13,5 mm 14 – 16 mm 15 – 18 mm 18 – 21 mm 21 – 25 mm	Thread length (GL) (mm) GL (mm) 6 7 8	Height (H) (mm) H (mm) 19 20 22.5 23.5 26.5	D (mm) D (mm) 21 27 33 38 45	Wrench size (SW1/SW2) SW1/SW2 14/14 mm 19/21 mm 24/27 mm 30/30 mm 36/36 mm	Item-No
Zurücksetzen
M12 x 1,5	5 – 6,5 mm	6	19	21	14/14 mm	1.740.1203.50
M16 x 1,5	7,5 – 10 mm	6	20	27	19/21 mm	1.740.1603.50
M16 x 1,5	6 – 7,5 mm	6	20	27	19/21 mm	1.740.1603.51
M20 x 1,5	11 – 13,5 mm	6	22.5	33	24/27 mm	1.740.2003.50
M20 x 1,5	9 – 12 mm	6	22.5	33	24/27 mm	1.740.2003.51
M25 x 1,5	15 – 18 mm	7	23.5	38	30/30 mm	1.740.2503.50
M25 x 1,5	14 – 16 mm	7	23.5	38	30/30 mm	1.740.2503.52
M32 x 1,5	21 – 25 mm	8	26.5	45	36/36 mm	1.740.3203.50
M32 x 1,5	18 – 21 mm	8	26.5	45	36/36 mm	1.740.3203.51
