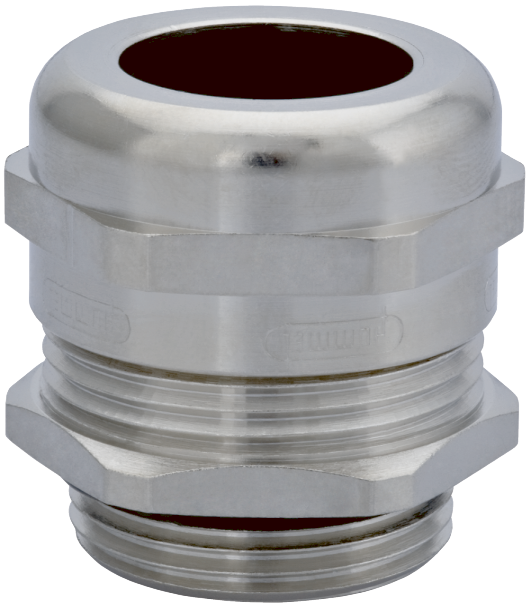

HSK-M-EMC

EMC-compatible cable gland

Material	Nickel-plated brass
Clamping insert	Polyamide V0 according to UL94
Seal	NBR
Material o-ring	NBR

Protection class	IP68 - 10bar/30min, IP 69 K
Type Rating by	4, 4X, 6, UL 50E
Temperature range	-40°C to +100°C
Variant	PG.-long, PG, Metric-long, Metric, NPT

Certificates

RoHS
EMV
Bahnzulassung
DNV
CSA
CE
VDE
cUL
UL
cUR
UR

Filter

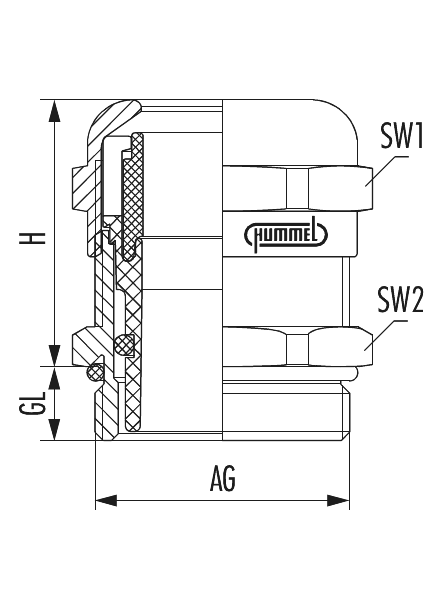

External thread (AG) AG M12 x 1,5 M16 x 1,5 M20 x 1,5 M25 x 1,5 M32 x 1,5 M40 x 1,5 M50 x 1,5 M63 x 1,5 NPT 1/2" NPT 3/4" NPT 3/8" PG 7 PG 9 PG 11 PG 13,5 PG 16 PG 21 PG 29 PG 36 PG 42 PG 48	Cable diameter Cable Ø 2 – 5 mm 2 – 6 mm 3 – 6,5 mm 3 – 7 mm 4 – 8 mm 5 – 9 mm 5 – 10 mm 6 – 12 mm 7 – 12 mm 9 – 16 mm 10 – 14 mm 13 – 18 mm 13 – 20 mm 15 – 21 mm 18 – 25 mm 19 – 27 mm 20 – 26 mm 22 – 32 mm 25 – 31 mm 29 – 35 mm 32 – 38 mm 37 – 44 mm	Thread length (GL) (mm) GL (mm) 5 6 6.5 7 8 9 10 12 13 15	Height (H) (mm) H (mm) 19 21 22 23 24 25 26 29 31 33 35 37 38	Wrench size (SW1/SW2) SW1/SW2 14/14 mm 17/17 mm 17/19 mm 20/20 mm 22/22 mm 22/24 mm 24/24 mm 30/30 mm 36/36 mm 40/40 mm 46/46 mm 50/50 mm 57/57 mm 64/64 mm 64/68 mm	Item-No
Zurücksetzen
PG 7	3 – 6,5 mm	5	19	14/14 mm	1.691.0700.01
PG 7	2 – 5 mm	5	19	14/14 mm	1.691.0700.15
PG 7	3 – 6,5 mm	10	19	14/14 mm	1.691.0700.60
PG 7	2 – 5 mm	10	19	14/14 mm	1.691.0700.61
PG 9	4 – 8 mm	6	21	17/17 mm	1.691.0900.01
PG 9	2 – 6 mm	6	21	17/17 mm	1.691.0900.15
PG 9	4 – 8 mm	10	21	17/17 mm	1.691.0900.60
PG 9	2 – 6 mm	10	21	17/17 mm	1.691.0900.61
PG 11	5 – 10 mm	6	22	20/20 mm	1.691.1100.01
PG 11	3 – 7 mm	6	22	20/20 mm	1.691.1100.15
PG 11	5 – 10 mm	10	22	20/20 mm	1.691.1100.60
PG 11	3 – 7 mm	10	22	20/20 mm	1.691.1100.61
M12 x 1,5	3 – 6,5 mm	10	19	14/14 mm	1.691.1200.30
M12 x 1,5	2 – 5 mm	10	19	14/14 mm	1.691.1200.31
M12 x 1,5	3 – 6,5 mm	6.5	19	14/14 mm	1.691.1200.50
M12 x 1,5	2 – 5 mm	6.5	19	14/14 mm	1.691.1200.51
NPT 1/2"	6 – 12 mm	13	24	22/24 mm	1.691.1200.70
NPT 1/2"	5 – 9 mm	13	24	22/24 mm	1.691.1200.71
PG 13,5	6 – 12 mm	6.5	24	22/22 mm	1.691.1300.01
PG 13,5	5 – 9 mm	6.5	24	22/22 mm	1.691.1300.15
PG 13,5	6 – 12 mm	10	24	22/22 mm	1.691.1300.60
PG 13,5	5 – 9 mm	10	24	22/22 mm	1.691.1300.61
PG 16	10 – 14 mm	6.5	23	24/24 mm	1.691.1600.01
PG 16	7 – 12 mm	6.5	23	24/24 mm	1.691.1600.15
M16 x 1,5	5 – 10 mm	10	22	20/20 mm	1.691.1600.30
M16 x 1,5	3 – 7 mm	10	22	20/20 mm	1.691.1600.31
M16 x 1,5	5 – 10 mm	6	22	20/20 mm	1.691.1600.50
M16 x 1,5	3 – 7 mm	6	22	20/20 mm	1.691.1600.51
PG 16	10 – 14 mm	10	23	24/24 mm	1.691.1600.60
PG 16	7 – 12 mm	10	23	24/24 mm	1.691.1600.61
M20 x 1,5	10 – 14 mm	10	24	24/24 mm	1.691.2000.30
M20 x 1,5	7 – 12 mm	10	24	24/24 mm	1.691.2000.31
M20 x 1,5	10 – 14 mm	6	24	24/24 mm	1.691.2000.50
M20 x 1,5	7 – 12 mm	6	24	24/24 mm	1.691.2000.51
PG 21	13 – 18 mm	7	24	30/30 mm	1.691.2100.01
PG 21	9 – 16 mm	7	24	30/30 mm	1.691.2100.15
PG 21	13 – 18 mm	12	24	30/30 mm	1.691.2100.60
PG 21	9 – 16 mm	12	24	30/30 mm	1.691.2100.61
M25 x 1,5	13 – 18 mm	12	26	30/30 mm	1.691.2500.30
M25 x 1,5	9 – 16 mm	12	26	30/30 mm	1.691.2500.31
M25 x 1,5	13 – 18 mm	7	26	30/30 mm	1.691.2500.50
M25 x 1,5	9 – 16 mm	7	26	30/30 mm	1.691.2500.51
PG 29	18 – 25 mm	8	29	40/40 mm	1.691.2900.01
PG 29	13 – 20 mm	8	29	40/40 mm	1.691.2900.15
PG 29	18 – 25 mm	12	29	40/40 mm	1.691.2900.60
PG 29	13 – 20 mm	12	29	40/40 mm	1.691.2900.61
M32 x 1,5	18 – 25 mm	12	31	40/40 mm	1.691.3200.30
M32 x 1,5	13 – 20 mm	12	31	40/40 mm	1.691.3200.31
M32 x 1,5	15 – 21 mm	12	33	36/36 mm	1.691.3200.32
M32 x 1,5	18 – 25 mm	8	31	40/40 mm	1.691.3200.50
M32 x 1,5	13 – 20 mm	8	31	40/40 mm	1.691.3200.51
M32 x 1,5	15 – 21 mm	8	33	36/36 mm	1.691.3200.52
NPT 3/4"	13 – 18 mm	13	25	30/30 mm	1.691.3400.70
NPT 3/4"	9 – 16 mm	13	25	30/30 mm	1.691.3400.71
PG 36	22 – 32 mm	8	35	50/50 mm	1.691.3600.01
PG 36	20 – 26 mm	8	35	50/50 mm	1.691.3600.15
PG 36	22 – 32 mm	15	35	50/50 mm	1.691.3600.60
PG 36	20 – 26 mm	15	35	50/50 mm	1.691.3600.61
NPT 3/8"	4 – 8 mm	15	21	17/19 mm	1.691.3800.70
NPT 3/8"	2 – 6 mm	15	21	17/19 mm	1.691.3800.71
M40 x 1,5	22 – 32 mm	15	37	50/50 mm	1.691.4000.30
M40 x 1,5	19 – 27 mm	15	33	46/46 mm	1.691.4000.32
M40 x 1,5	22 – 32 mm	8	37	50/50 mm	1.691.4000.50
M40 x 1,5	19 – 27 mm	8	33	46/46 mm	1.691.4000.52
PG 42	32 – 38 mm	9	37	57/57 mm	1.691.4200.01
PG 42	25 – 31 mm	9	37	57/57 mm	1.691.4200.15
PG 42	32 – 38 mm	15	37	57/57 mm	1.691.4200.60
PG 42	25 – 31 mm	15	37	57/57 mm	1.691.4200.61
PG 48	37 – 44 mm	10	38	64/64 mm	1.691.4800.01
PG 48	29 – 35 mm	10	38	64/64 mm	1.691.4800.15
PG 48	37 – 44 mm	15	38	64/64 mm	1.691.4800.60
PG 48	29 – 35 mm	15	38	64/64 mm	1.691.4800.61
M50 x 1,5	32 – 38 mm	15	37	57/57 mm	1.691.5000.30
M50 x 1,5	25 – 31 mm	15	37	57/57 mm	1.691.5000.31
M50 x 1,5	32 – 38 mm	9	37	57/57 mm	1.691.5000.50
M50 x 1,5	25 – 31 mm	9	37	57/57 mm	1.691.5000.51
M63 x 1,5	37 – 44 mm	15	38	64/68 mm	1.691.6300.30
M63 x 1,5	37 – 44 mm	10	38	64/68 mm	1.691.6300.50
M63 x 1,5	29 – 35 mm	10	38	64/68 mm	1.691.6300.51
