| Material | Polyamide, fiber reinforced |
| Material o-ring | NBR |
| Protection class |
IP68 - 10bar/30min, IP 69 K |
| Ex-protection level |
II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Temperature range | -20°C to +90°C |
| Tightening torque | 4.5 Nm |
| Colour | black |
| RAL | 9005 |
| Variant | Metric |

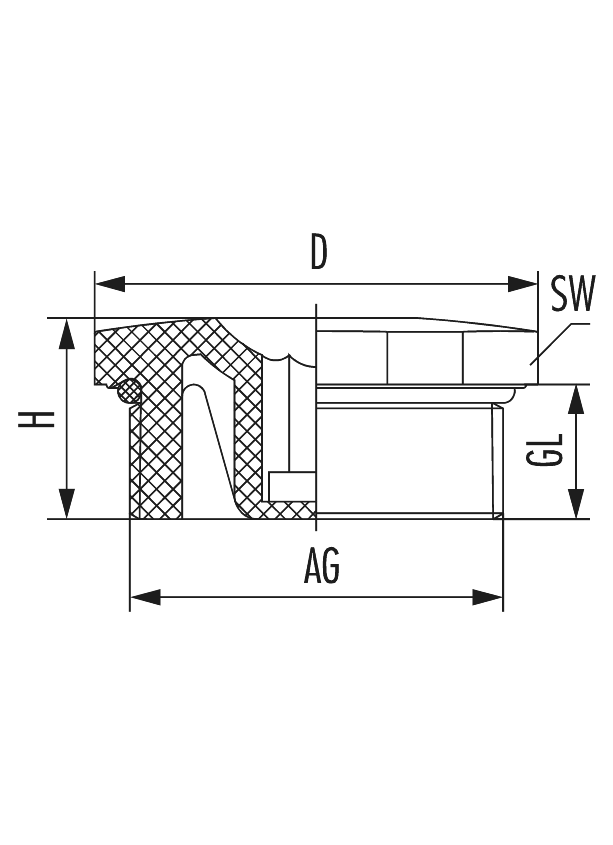

| External thread (AG) | M20 x 1,5 |
| Thread length (GL) | 9 mm |
| Height (H) | 14.5 mm |
| D | 25.5 mm |
| Wrench size (SW) | 24 mm |
| Allen key | 8 |
| Product group | Accesories |
