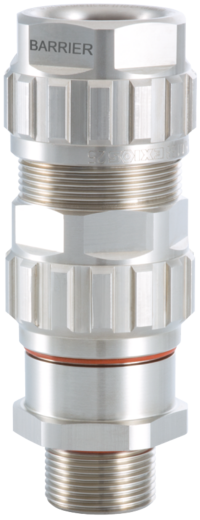

1.606.3803.70 EXIOS +barrier nickel-plated brass NPT

Cable gland for use in "Hazardous Areas". A sealing compound provides a seal around each individual cable core.
Material Nickel-plated brass
Seal VMQ (silicone)
Material o-ring VMQ (silicone)
Clamping insert Polyamide 6
Armour Metallic armour or screen
Compound Two-component epoxy compound
Protection class IP 66,
IP 67,
IP 68 - 5bar/30min
Ex-protection level Class I Div 2 Groups A,B,C,D,
Class II Div 1 Groups E,F,G,
I M2 Ex de,
I M2 Ex ta IIIC Da,
I Mb IIC Gb
Temperature range -60°C to +85°C
Variant NPT
External thread (AG) NPT 3/8"
Size 20-1
A1 6 – 12 mm
max. A2 8,2 mm
max. A3 7,9 mm
Thread length (GL) 16 mm
Height (H) 64 mm
Wrench size (SW1/SW2) 22/22 mm
D 27 mm
max. No. cores 8
Armouring clamping ring 1 0 – 0,7 mm
Armouring clamping ring 2 0,7 – 1,25 mm
Tightening torque 8 Nm
Product group Ex d,
Ex e
