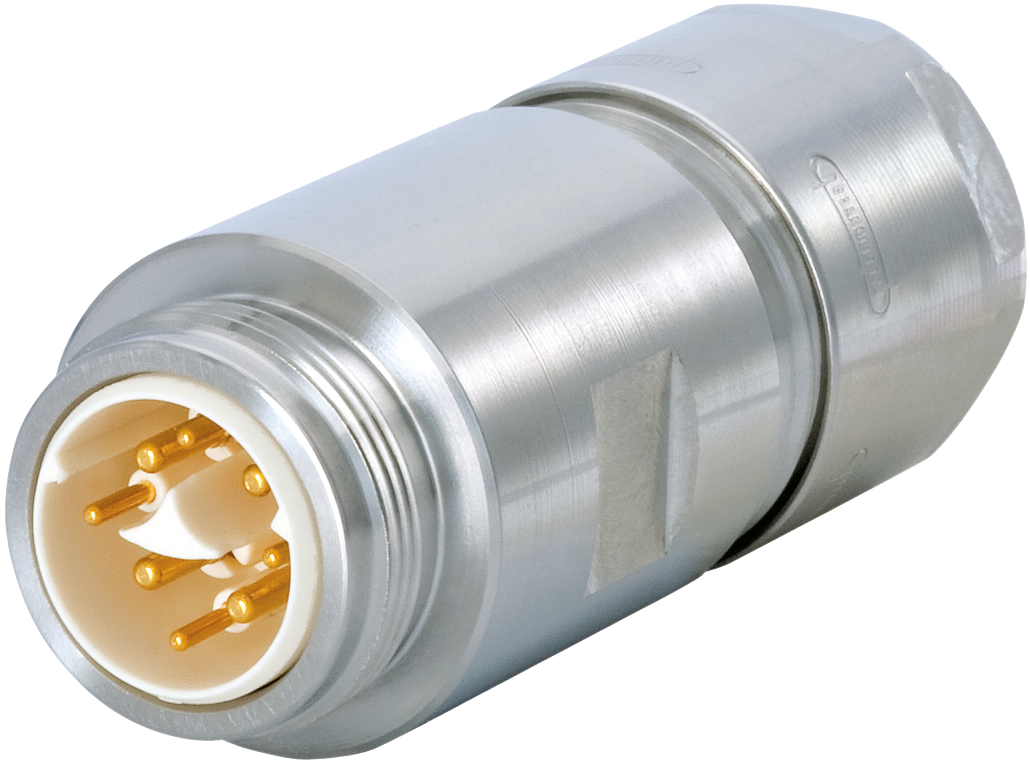

| Housing type | Coupler |
| Material housing | Stainless steel 1.4404 (AISI 316) |
| Insert | Pin |
| Version | Screw |
| External thread plug-in side | M16 x 0,75 |
| Locking type | Screw |
| Shield | shielded |
| Seal type | O-Ring |
| Material seals/o-rings | FKM (FPM) |
| Wrench size (SW1/SW2) | 18/18 mm |
| Cable diameter | 5 – 9 mm |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
