| Material housing |
brass, Copper-Zinc alloy |
| Material housing surface | Nickel |
| Installation type | Rear wall |
| External thread (AG) | M25 x 1,5 |
| External thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | shielded |
| Seal type | O-Ring |
| Material seals/o-rings | NBR |

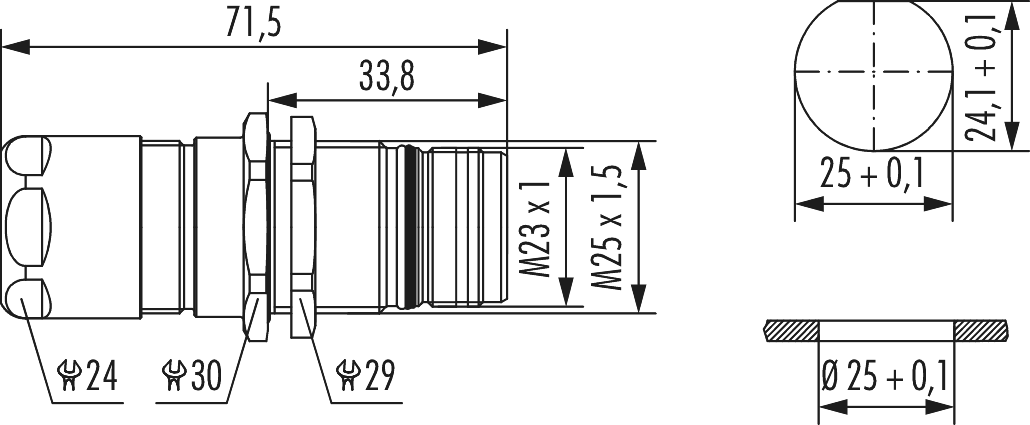

| Panel hole | Ø 25 + 0,1 mm |
| Drill form |
D 24,1 + 0,1, D Ø 25 + 0,1 mm |
| Length (L) | 71.5 mm |
| Wrench size (SW1/SW2/SW3) | 24/30/29 mm |
| Cable diameter | 11 – 17 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
| suitable contact inserts |
7084909101, 7084909102, 7084910101, 7084910102, 7084943121, 7084943122, 7084944101, 7084944102, 7084951121, 7084951122, 7084953101, 7084953102 |
