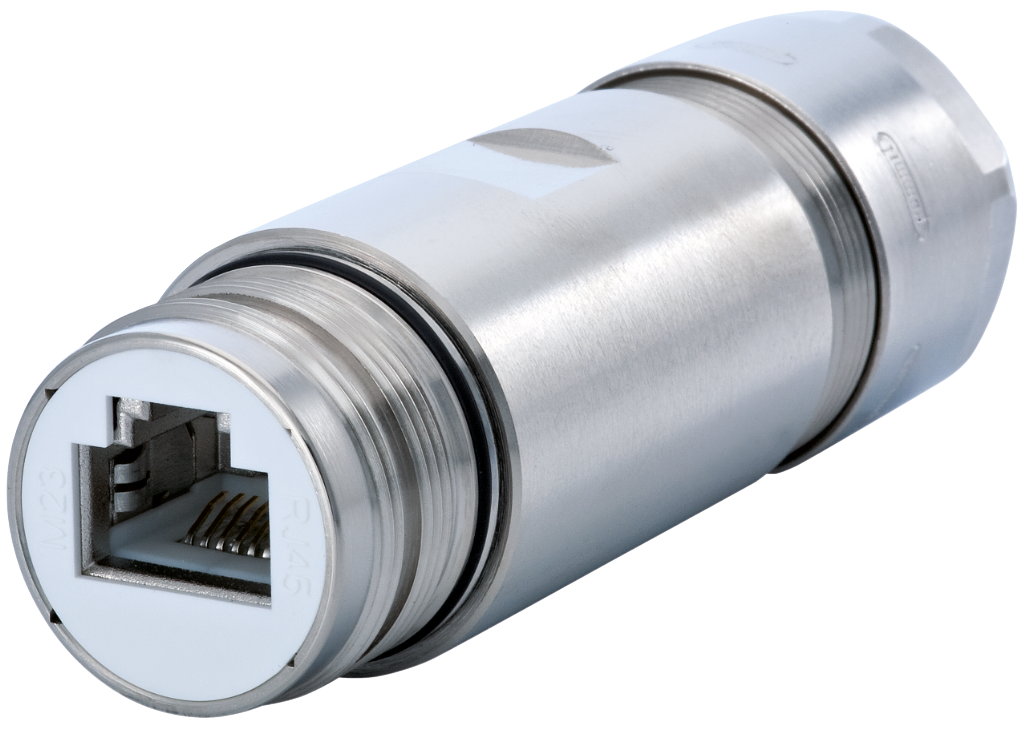

Housing type | Coupler |
Material housing |
brass, Zinc Die Cast |
Material housing surface | Nickel |
Version | Screw |
External thread plug-in side | M23 x 1 |
Locking type | Screw |
Shield | unshielded |
Seal type | O-Ring |
Material seals/o-rings |
FKM (FPM), NBR |
Wrench size (SW1/SW2) | 24/24 mm |
Cable diameter | 3 – 7 mm |
Length (L) | 79 mm |
Temperature range | -40°C to +125°C |
Protection class |
IP 67, IP 69 K |
suitable contact inserts |
7MRJ450007, A7RJ-081M41, A7RJ-081M6A, A7RJ-821M51 |
