| Material housing |
brass, Zinc Die Cast |
| Material housing surface | Nickel |
| Installation type | Front wall |
| Version | TWILOCK-S |
| External thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals/o-rings | FKM (FPM) |

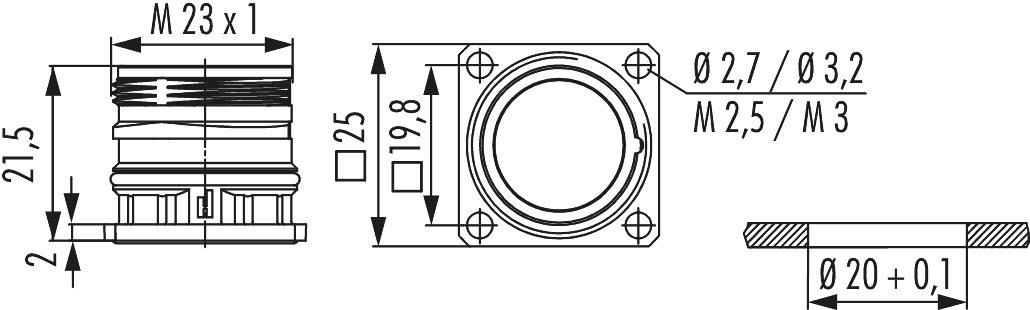

| Panel hole | Ø 20 + 0,1 mm |
| Flange | 25 x 25 mm |
| Hole distance | 19.8 mm |
| Hole diameter | 4 x Ø 3,2 mm |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
