| Material housing |
brass, Zinc Die Cast |
| Material housing surface | Nickel |
| Insert | Pin |
| Installation type | Front wall |
| Version | for pin inserts |
| External thread (AG) | M20 x 1,5 |
| External thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals/o-rings | NBR |
| Coding position | |

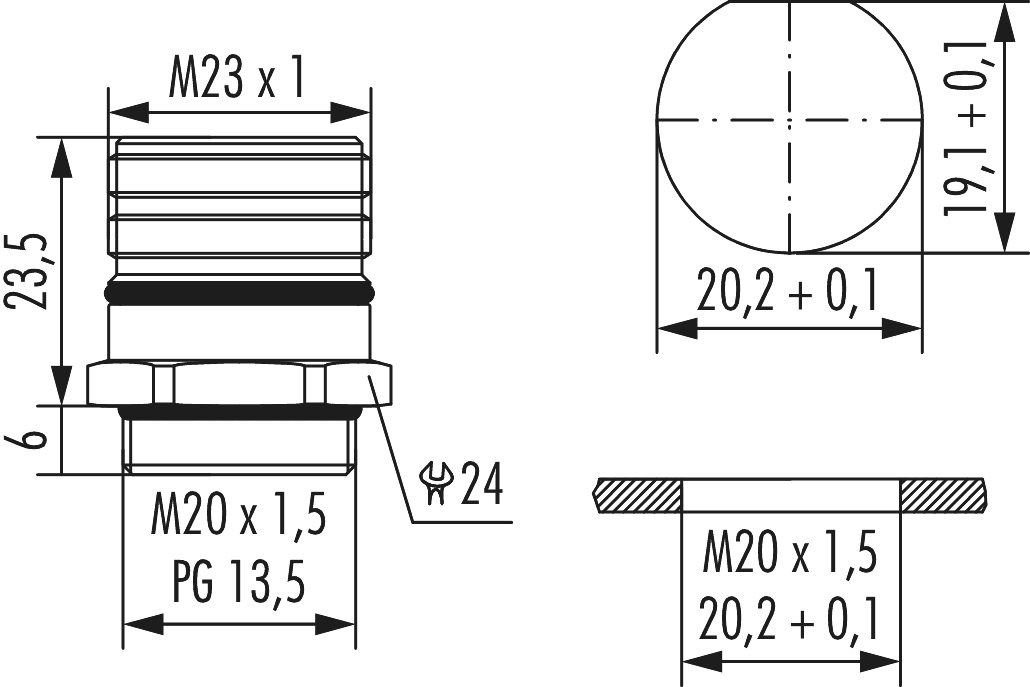

| Panel hole | Ø 20,2 + 0,1 mm |
| Drill form |
D 19,1 + 0,1, D Ø 20,2 + 0,1 mm |
| Length (L) | 29.5 mm |
| Wrench size (SW) | 24 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
