| Material housing |
Zinc Die Cast, brass |
| Material housing surface | Nickel |
| Installation type | Front wall |
| Version | with knurled nut |
| Internal thread plug-in side | M23 x 1 |
| Knurled nut-Ø plug-in side | 27.2 mm |
| Locking type | Screw |
| Shield | unshielded |
| Material seals/o-rings | NBR |
| Coding position | Positionable coding (8x45°) |

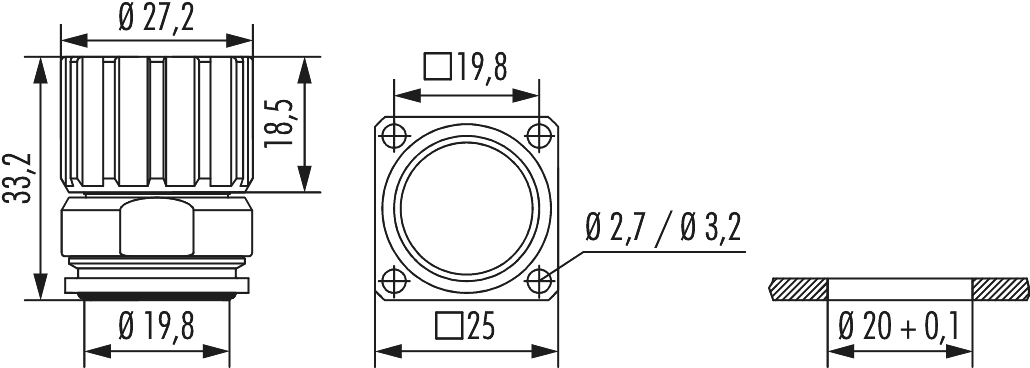

| Panel hole | Ø 20 + 0,1 mm |
| Flange | 25 x 25 mm |
| Hole distance | 19.8 mm |
| Hole diameter | 4 x Ø 3,2 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
