| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Installation type | Rear wall |
| Version |
TWILOCK-S, with vibration protection |
| External thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals/o-rings |
FKM (FPM), NBR |

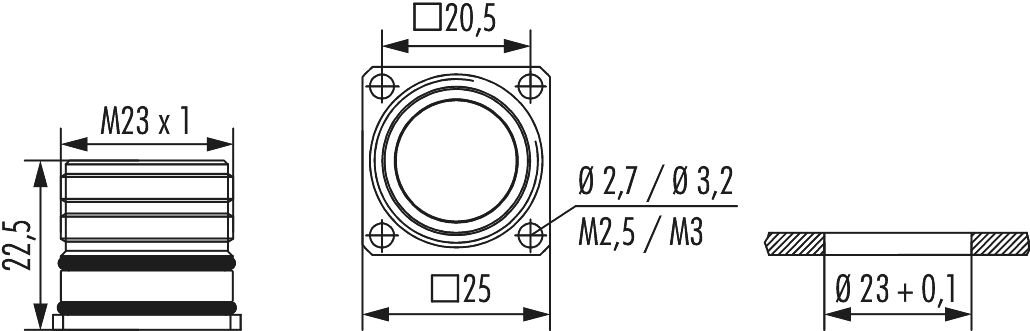

| Panel hole | Ø 23 + 0,1 mm |
| Flange | 25 x 25 mm |
| Hole distance | 20.5 mm |
| Hole diameter | 4 x M3 mm |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
