| Characteristic of connection | Crimp |
| Number of poles | 10 |

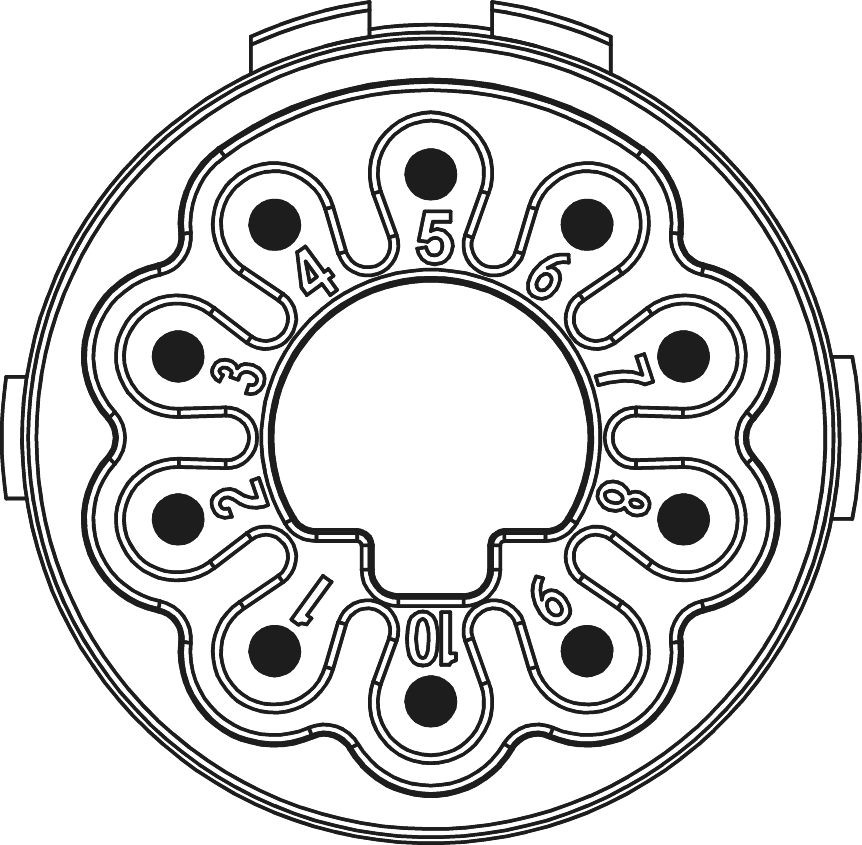

| Pole picture | 10 |
| Insert | Socket |
| Color contact insert | blue |
| Material insulating body |
PA 6, PBT |
| Number of contacts signal | 10 |
| Contact-Ø signal | 1 mm |
| Terminal cross section signal | 0,14 – 1,5 mm² |
| Terminal cross section power | 0,75 – 4 mm² |
| Nominal current signal | 10 A |
| Nominal voltage at degree of pollution 3 signal | 160 V~ |
| Test voltage signal | 2500 V~ |
| Test voltage power | 4000 V~ |
| Insulation resistance signal | > 10^13 Ω |
| max. contact resistance signal | 3 mOhm |
| max. contact resistance power | 3 mOhm |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Flammability | V-0 (UL 94) |
| Suitable Signal contacts |
7010941002, 7010941022 |
